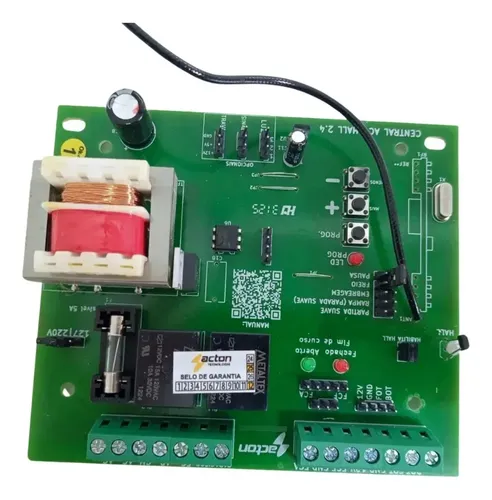

Acton prinplaat AC4 Hall
Key Technical Features
- Motor Capacity: Supports single-phase gate motors up to 1/3 HP (127V) and 1/2 HP (220V). [1]
- Limit Switch: Dedicated 3-pin and 5-pin connections plus terminal inputs specifically for Hall sensor end-of-stroke tracking, backed by indicator LEDs. [1]
- Soft Stop & Braking: Features up to 20 levels of adjustable deceleration (ramps) and reverse-command braking. [1]
- Inputs & Outputs: Includes 12Vdc auxiliary output for peripherals, terminals for push-buttons (botoeira), and photocells or inductive loops (fotocélula). [1]
USD70.00
Acton prinplaat AC4 Hall
Beschrijving
Acton AC4 Hall is a universal electronic control board (printplaat) designed for single-phase gate operators up to 1/3 HP (at 127V) or 1/2 HP (at 220V). It features digital button programming, automatic travel time learning, magnetic Hall sensor limits, and adjustable soft stop/start ramp settings. [1]
